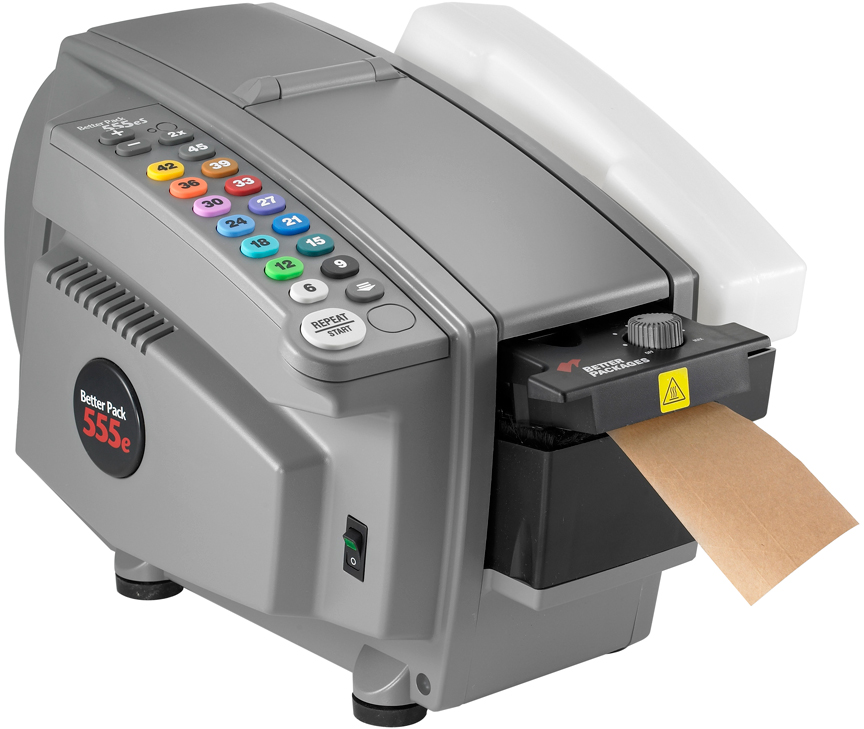

555es tape dispenser Case Study for a forward thinking, proactive fulfillment center that switched to Better Pack 555e Series dispensers. BP555eS, BP-555, BP-555e, BP-555eS, BP-555eSA. Available in 120 Volt. 220 Volt available on request.
UL Approved and Listed for Over 45 Years
The Better Pack 555es Series dispensers were extensively tested and put through more than 1.5 million cycles without any defects. It is the only electronic water-activated tape dispenser in the industry that is UL Approved and Listed. We are so confident of its performance that we've backed it with the best warranty in our industry!
Certification Terms Quick Reference Guide that easily explains what certifications such as UL, CE and CSA mean and which countries require them.
Performance Features
A color-coded keypad dispenses preset lengths of WAT, so there's no more awkward reaching and stretching around the box with a tape gun. SGS Tests 134992-1 and 149698 show that sealing cartons using the 555 requires less time than applying plastic tape with a hand gun. Adding the AMD automatic measuring device requires even less time. In fact, 28% less time!
- A micro-processor based control system enhances reliability and allows the Better Pack 555eSA to be interfaced with PCs, printers, weighing scales, shipping systems, foot pedals and measuring devices to achieve the ultimate carton sealing solution
- For ease of operation, improved "soft-touch" tactile feel and durable performance.
- Stainless steel tape path and steel side frames for added strength and longevity.
- Superior brush wetting system ensures proper activation and wetting of tape adhesive.
- Fully electronic control system improves reliability and serviceability.
- Programmable keys (BP555eSA) - Set tape lengths up to 120" depending on model increments. Tape length is adjustable (up or down) in 1/2" increments.
- Random length key to allow tape to be dispensed at any length.
- Large tape capacity- for fewer changeovers (1,000 Foot tape Roll.)
- Extra heavy duty, self-oiling blade for superior, consistent cutting.
- Steel frame construction covered with ABS plastic for strength, durability and impact resistance.
- 20% increase in motor power for longer life, cooler running and smoother operation.
Safety Features of the better pack 555eS
- Extra long (detachable) electrical cord for improved operator ease, comfort and safety.
- Industry's only UL Listed electronic water-activated tape dispenser. Engineered and built to meet or exceed FCC, UL, CE, CSA, CUL, and regulatory requirements.
- Ergonomic design allows for operation from either side of the machine.
- Designed for easy mounting on work surfaces.
- Larger water bottle capacity, for fewer refills and less down time.
- Improved, adjustable top heater ensures superior tape adhesion and performance. Plus, it's thermostatically controlled and low voltage - for safe long life operation and permits for the use of an extensive variety of tapes.
NOTE: TAPE NOT INCLUDED WITH DISPENSER
Accessories to Optimize Performance
AMD - (Automatic Measuring Device) interfaces with the BP555eSA, BP555eMA and BP55eLA models. This accessory automatically measures a carton and dispenses the correct amount of tape every time. It greatly increases productivity and savings while decreasing tape waste and helps ensure your packages have the professional image you desire.

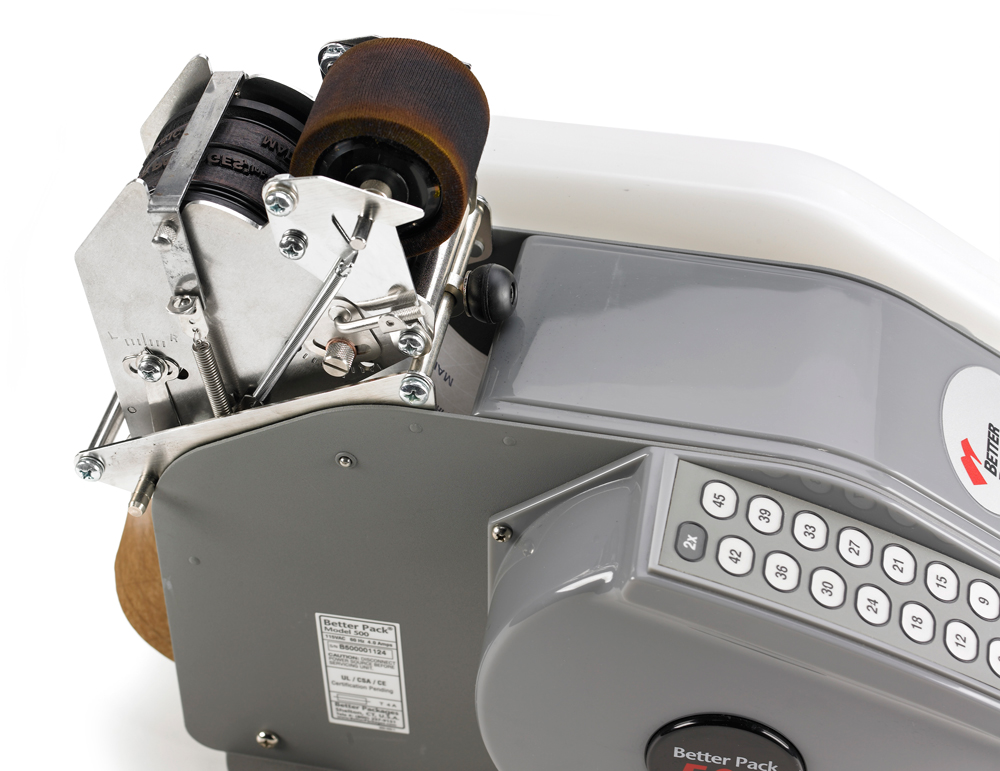

Code Taper
The Code taper can print custom messages on demand. You might use it to apply codes, date stamps, logos and / or tag lines as the tape is being dispensed. The custom imprinting helps increase security and tracking, while allowing your package to not only carry the brand on the inside but branding your message or company on the outside.
Tape Aerial
The Tape Aerial conveniently and effectively holds the tape in an upright position. This allows the user to use both their hands on a package until they are ready to grab the tape and apply it. The tape Aerial really simplifies the packaging process, all the while speeding it up too.
|
|
| Specifications |
| Size |
20" x 12.5"W x 12" H (51 x 32 x 30 cm) |
| Dispensing Speed: |
Up to 45" per second (114 cm) |
| Water Bottle Capacity: |
2 pints 2 oz. (1.0 liter) |
| Shipping Weight: |
32 lbs. (15 kg) |
| Power Requirements: |
115 volts, 60 Hz, 5 amps; UL listed, CSA (CUL) Tape Width: 1 *" to 3"W (3.8 to 7.7cm) |
| Maximum Roll Size: |
Up to 1000 ft. of tape; up to 10" diameter roll (25cm) |
| Warranty: |
2 year parts, 6 months labor |
The Better Pack 555e is available in several models that are designed to fit your packing specifications. The seven models have the same physical characteristics, with the exception of the keypads and related functions. Tape Lengths Dispensed (Front Keys): |
| 555eS |
6" - 45" (15 - 114 cm) |
| 555eSA |
6" - 45" (15 - 114 cm) |
| 555eL |
12" - 90" (30 - 228 cm) |
| 555eLA |
12" - 90" (30 - 228 cm) |
| 555eM |
10 - 140 cm (metric) |
| 555eMA |
10 - 140 cm (metric) |
|
Important Service & Repair Note: When servicing a Better Packages product, only genuine Better Packages replacement parts should be used. Parts from other sources will void all existing warranties and any UL, CE, CSA certifications. Parts not manufactured by Better Packages may also create a safety hazard as well as diminished product performance.
